4SK SERIES deep well submersible water pump for borewell

Deep Well Pump

PREV：4QGD SERIES deep well srew submersible water pump
NEXT：6SP SERIES Single phase deep well water pumps

Product Details

Applications For water supply from wells or reservoirs. For domestic use, for civil and industrial applications. For garden use and irigation.	Options on request Special mechanical seal Other voltages or frequency 60Hz Single phase motor with built-in capacitor
Operating conditions Maximum fluid temperature up to+35℃. Maximum sand content:0.25%. Maximum immersion:50m. Maximum well diameter:4"	Warranty:1 year According to our generalsales conditions.

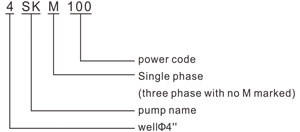

Motor and Pump Rewindable motor Three-phase:380V-415V/50Hz Single-phase:220V-240V/50Hz Equip with start control box or digital auto-control box NEMA dimension standards Curve tolerance according to ISO 9906	Model Description

Components	Material
Delivery casing	Cast-CuASTM C85500
Suction lantern	Cast-Cu ASTM C85500
Diffuser	Cast-Cu ASTM C85500
Impeller	Cast-Cu ASTM C85500
Strainer	AISI 304 SS
Motor external casing	AISI 304 SS
Top chock	①Cast-iron ASTM NO. 30②Cast-Cu ASTM C85500
Bottom support	AISI 304 SS
Mechanical seal	Special seal for deep well (Graphite-ceramic/TC)
Shaft	AISI 303 SS-ASTM 5140
Bearing	NSK
Seal lubricant oil	Oil for food machinery and pharmaceutic use.
