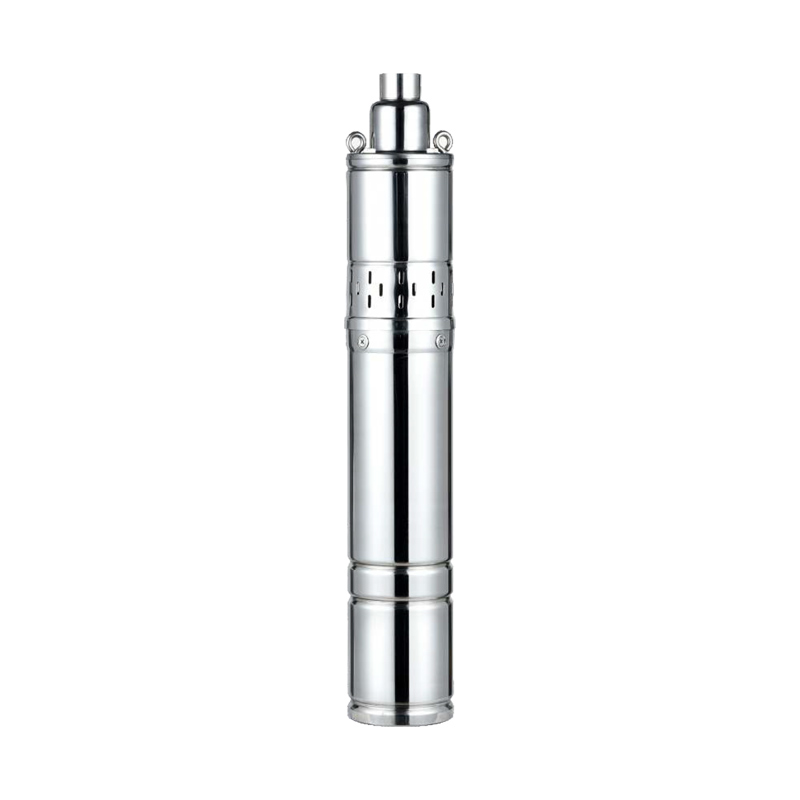

4QGD SERIES deep well srew submersible water pump

Deep Well Pump
Inquiry Now Download Catalog
  • Product Details
Applications
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irigation.
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:50m.
Maximum well diameter:2"3"4"
Warranty:1 year
According to our generalsales conditions.
Motor and Pump
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
NEMA dimension standards
Curve tolerance according to ISO 9906
Model Description




Components

Material

Delivery casing

AISI 304 SS

Strainer

AISI 304 SS

Motor externsil casing

AISI 304 SS

Top chock

①Cast-iron ASTM NO.30 Cast-Cu ASTM C85500

Bottom support

AISI 304 SS

Mechanical seal

Special seal for deep well(Graphite-ceramic/TC)

Shaft

AISI 303 SS-ASTM 5140

Bearing

NSK

Seal lubricant oil

Oil for food machinery and pharmaceutic use.
