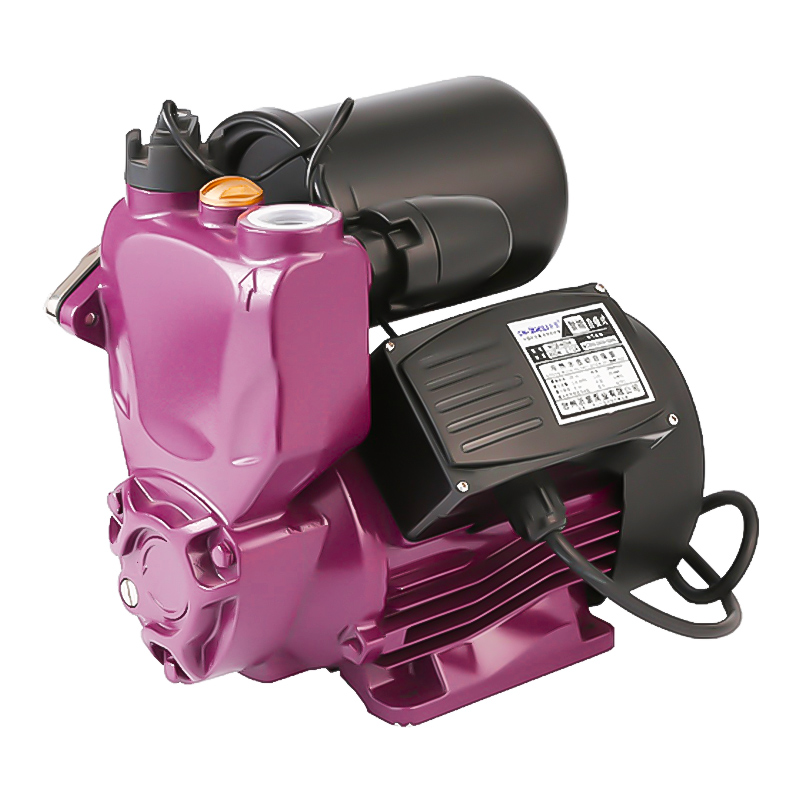

Single phase automatic booster Self-priming Pump

Self-priming Booster Pump
Inquiry Now Download Catalog
  • Product Details
Model

Power
(kw)

Power
(HP)

Voltage
(V/Hz)

Max Suction
(M]

Max Head
(M)

Max Flow
(M3/h)

Speed
(RPM)

Outlet

(MM)

WZB-200A

0.2KW

0.25 HP

220V/50HZ

8.5

25

1.8

2860

25

WZB-300A

0.3KW

0.4 HP

220V/50HZ

8.5

32

2.1

2860

25

WZB-400A

0.4KW

0.5 HP

220V/50HZ

8.5

35

2.4

2860

25

WZB-600A

0.6KW

0.75 HP

220V/50HZ

8.5

40

2.8

2860

25

WZB-800A

0.8KW

1.0 HP

220V/50HZ

8.5

45

3.0

2860

25

WZB-1100A

1.1KW

1.5 HP

220V/50HZ

8.5

55

5.5

2860

40

WZB-1100A (24LTANK)

1.1KW

1.5 HP

220V/50HZ

8.5

55

5.5

2860

40

WZB-1500A (24LTANK)

1.5KW

2 HP

220V/50HZ

8.5

60

6.0

2860

40

NO.

DESCRIPTION

NO.

DESCRIPTION

NO.

DESCRIPTION

NO.

DESCRIPTION

1

O Ring

10

Fairtead

19

Bolt

28

Impeller

2

O Ring

11

Capacitor

20

Suction flange

29

Key

3

Charge plug

12

FAN

21

Gasket

30

Snap ring

4

Pressure switcti

13

Terminal cover

22

Pump body

31

Washer

5

Casing with wound stator

14

Fan cover

23

Pump support

32

Mechanical seal

6

O.Ring

15

Screw

24

Bolt

33

Bearing

7

Pressure tank

16

Screw

25

O-Ring

34

Rotor

8

Terminal box

17

Check vahre

26

Spring washer

35

Split ring

9

Screw

18

O- Ring

27

Bolt

Welcome to ZHELI PUMP

China's CN-ZHELI
Good pump of the world

Zhejiang Zheli New Material Co., Ltd was established on March 9, 2016, authorized by the State TrademarkOffice as "CN-ZHELI". The official date of the brand is June 28, 2016. It has beed professional custom Single phase automatic booster Self-priming Pump suppliers and OEM/ODM Single phase automatic booster Self-priming Pump company. Development direction: develop a whole series of "zhe-li"image products, develop and form "zhe-li"brand, strive to do a good job in household pumps and industrial irrigation two major categories, strive to be the forefront of the national pump industry, for small efforts, efforts for everyone, to make contributions to the country.
Company quality policy: zheli adhere to the customer first, service first"principle. Always believe that: adhere to innovation, improve quality, to the world. The goal of pursuing: independent brand, independent style, and finally build "innovative zhe li, wisdom zhe li, science and technology zhe li, international zhe li.
View More
Industry Experience 10 Years

news

China's zheli, the world's good pump

Single phase automatic booster Self-priming Pump Industry Knowledge Extension

Is single phase automatic booster self-priming pump suitable for home use?
A single phase automatic booster self-priming pump is usually suitable for home use, but it depends on your needs and usage. Here are some factors to consider:
Water pressure: If the water pressure in your home is too low and needs to be boosted to meet your daily water needs, a single phase automatic booster self-priming pump may be a good choice.
Water consumption: A single phase automatic booster self-priming pump can provide a certain flow and water pressure, but if your water consumption is large, you may need to consider a more powerful pump or other equipment.
Installation and maintenance: Installation and maintenance of single phase automatic booster self-priming pump require certain skills and knowledge, if you do not know how to install and maintain the equipment correctly, it is best to ask professionals to help you.
In summary, a single phase automatic booster self-priming pump can be a solid choice for a home water system, but it's best to know your water needs and seek professional advice before choosing.
What are the advantages of the self-priming function of the single phase automatic booster self-priming pump?
The self-priming function of the single phase automatic booster self-priming pump means that it can draw water by itself and deliver it to the desired location without external guidance or assistance. Here are some advantages:
Convenience: The self-priming function of the single phase automatic booster self-priming pump can save the trouble of installing water inlet pipes or adding water pumps, and can also avoid using external water sources or pumps to guide water sources.
Independence: The self-priming function of the single phase automatic booster self-priming pump enables it to operate independently without being affected by external conditions, such as water supply pipeline failure or external pump failure.
Stability: Since the self-priming function of the single phase automatic booster self-priming pump can maintain constant water pressure and flow, it can ensure a stable water supply.
Applicability: The self-priming function of single phase automatic booster self-priming pump can be applied to many different water sources, such as water wells, water towers, water tanks, etc.
In conclusion, the self-priming function of single phase automatic booster self-priming pump has the advantages of convenience, independence, stability and applicability, so it is an ideal choice for many domestic and commercial water systems.
How does the single phase automatic booster self-priming pump boost automatically?
single phase automatic booster self-priming pump is a kind of automatic control water pump, its automatic boost function can be realized by the following ways:
Pressure sensor: single phase automatic booster self-priming pump is usually equipped with a pressure sensor, which can sense the water pressure in the pipeline. When the water pressure drops to a certain level, the controller will start the pump to increase the water pressure, so as to achieve the effect of automatic boosting.
Controller: single phase automatic booster self-priming pump is usually equipped with a controller, which can monitor and control the operation of the pump. The controller can automatically start or stop the pump according to the change in water pressure to maintain constant water pressure and flow.
Water tank: A single phase automatic booster self-priming pump is usually also equipped with a water tank, which can store a certain amount of water to provide additional water pressure and flow when needed. When the water pressure in the pipeline drops to a certain level, the water in the tank will be pumped out, thereby increasing the water pressure and increasing the flow.
In short, the automatic boost function of single phase automatic booster self-priming pump can be realized by components such as a pressure sensor, controller, and water tank. These components can monitor and control the operation of the pump to maintain constant water pressure and flow, and provide convenient and stable automatic boosting service.
