Custom 4SD SERIES 220v 0.75kw 1hp deep well submersible pump

Home / Product / Deep Well Pump / 4SD SERIES 220v 0.75kw 1hp deep well submersible pump
  • Product Details
Applications
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irigation.
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:90m.
Maximum well diameter:4"
Warranty:1 year
According to our generalsales conditions.
Motor and Pump
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO 9906

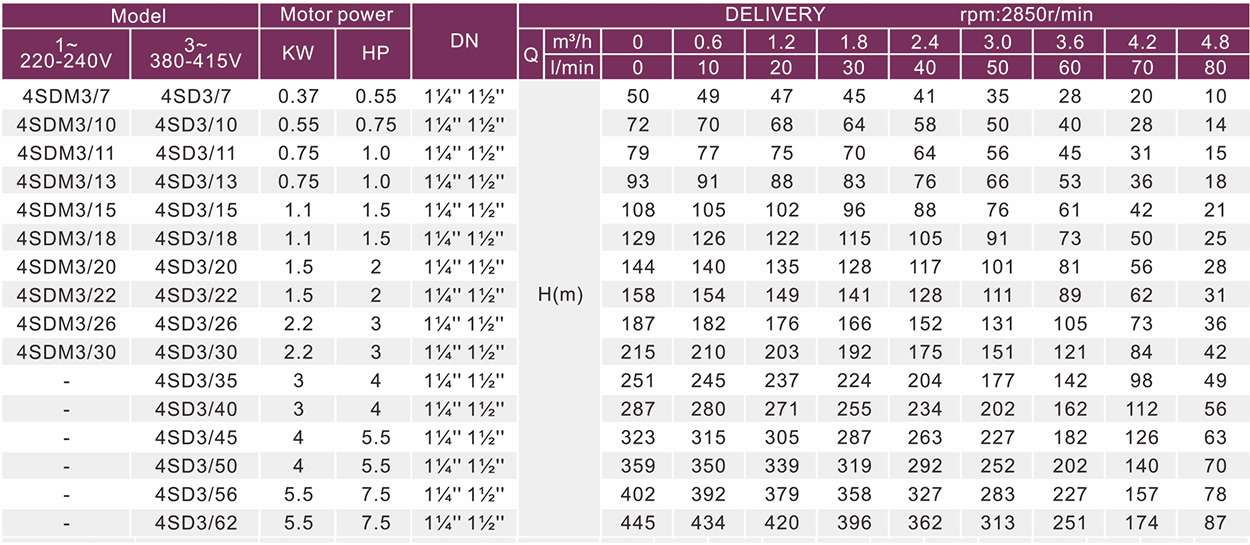

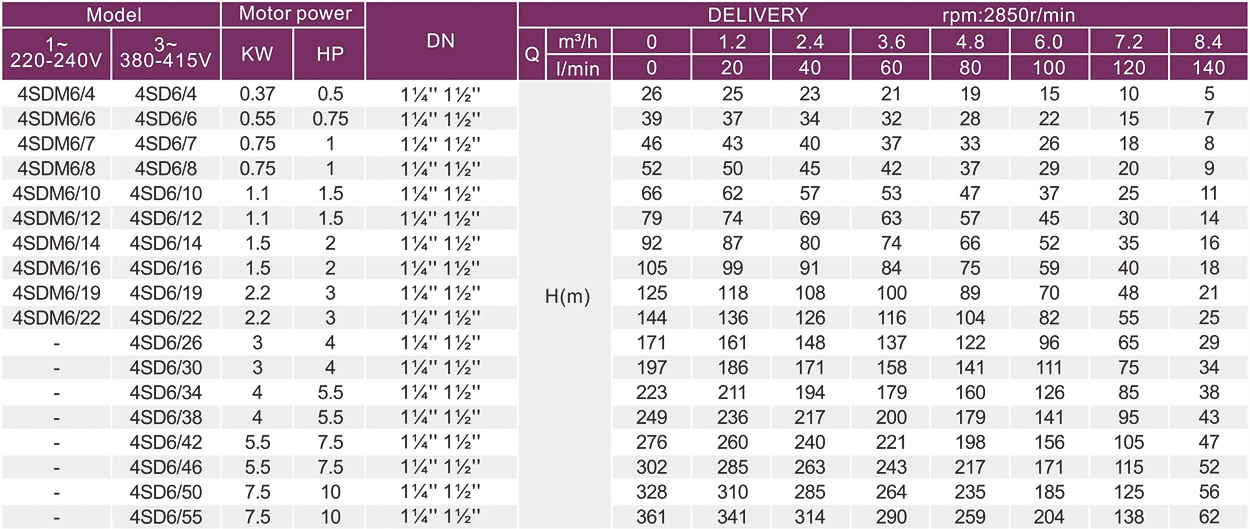

Model Description




 Components

 Material

Pump external casing

AISI 304 SS

Delivery casing Suction lantern

Cast-CuASTM C85500 Cast-CuASTM C85500

Diffuser

Plastic.PC

Impeller

Plastic.POM

Shaft

①AISI 316 SS ② AISI 304SS

Shaft coupling

①AISI 316 SS ② AISI 304SS

Wear ring

AISI 304 SS

Motor external casing

AISI 304 SS

Top chock

① Cast-CuASTM C85500

②Cast-iron ASTM NO.30

Bottom support

AISI 304 SS

Mechanical seal

Special seal for deep well(Graphite-ceramic/TC)

Shaft

AISI 303 SS-ASTM 5140

Bearing

NSK

Seal lubricant oil

Oil for food machinery and pharmaceutic use.
